Seco

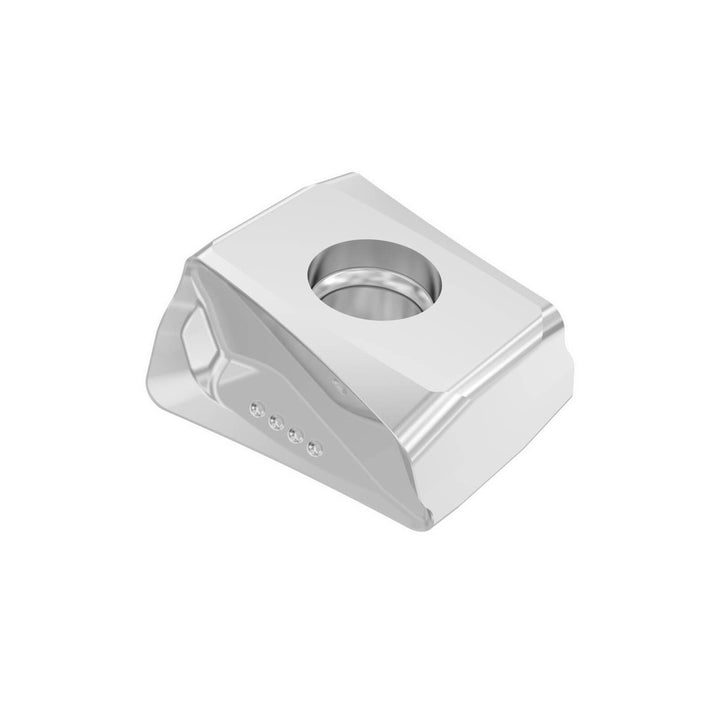

LOEX120712TR-T4-M12 Carbide Insert, Grade MP3501, TiCN - Seco 10198843
MFR# 10198843ISO/ANSI# LOEX120712TR-T4-M12Series LOEX
$40.34List $51.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 10198843 is a LOEX120712TR-T4-M12 carbide indexable insert, grade MP3501, TiCN coated.
Specifications
Ansi codeLOEX120712TR-T4-M12
Chip breakerM12
Coating finishTiCN
Coating processDuratomic
Corner radius in3/64
Cutter series compatibilityR217/220.94-12
Cutting directionRight Hand
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2953
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeRectangle
Insert size12
Insert size code120712
Insert styleLOEX
Iso codeLOEX120712TR-T4-M12
Length0.5591
Length range0.5000 to 0.6000
Manufacturers catalog number10198843
Manufacturer gradeMP3501
Material applicationSteel
Material gradeP20; P30; P40; K20; K30; K40
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges4
RakeNegative
Rake angle35.000
Relief angle0.000
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.4012
Thickness range0.3500 to 0.5000
Width0.2953
