Seco

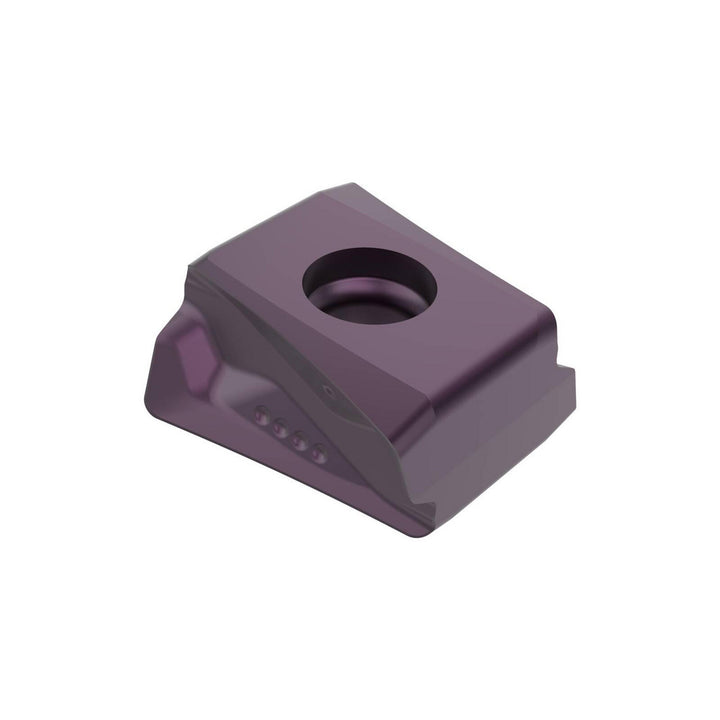

LOEX120708TR-T4-M12 Carbide Insert, Grade MK2050, TiSiN - Seco 10207741
MFR# 10207741ISO/ANSI# LOEX120708TR-T4-M12Series LOEX
$39.23List $50.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMK2050
MaterialCarbide
CoatingTiSiN
Description
The Seco 10207741 is a LOEX120708TR-T4-M12 carbide indexable insert, grade MK2050, TiSiN coated.
Specifications
Ansi codeLOEX120708TR-T4-M12
Chip breakerM12
Coating finishTiSiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217/220.94-12
Cutting directionRight Hand
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2953
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeRectangle
Insert size12
Insert size code120708
Insert styleLOEX
Iso codeLOEX120708TR-T4-M12
Length0.5591
Length range0.5000 to 0.6000
Manufacturers catalog number10207741
Manufacturer gradeMK2050
Material applicationCast Iron; Hard Material
Material gradeK01; K35
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges4
RakeNegative
Rake angle35.000
Relief angle0.000
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.4039
Thickness range0.3500 to 0.5000
Width0.2953
