Seco

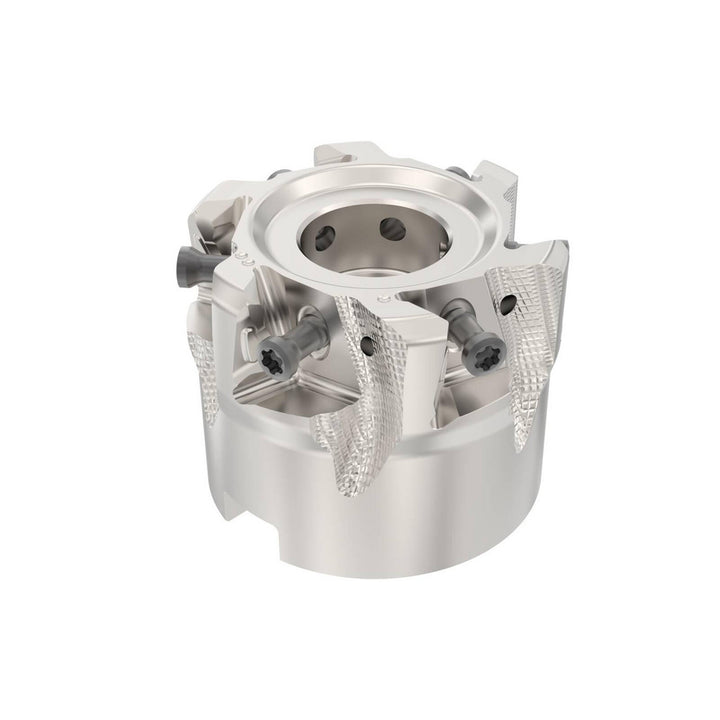

Indexable Milling Cutters - Seco 10207993
MFR# 10207993Series R220.94
$881.56List $965.52
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Seco 10207993 indexable milling cutters. Series R220.94.
Specifications
Arbor hole diameter in3/4
Compatible insert size code1207..
Complete insert compatibilityLOEX1207
Coolant throughYes
Cutter styleR220.94
Cutting directionRight Hand
Cutting edge length0.4720
Hub diameter1.8504
Insert holding methodScrew
Keyway width0.3228
Lead angle90
Manufacturers catalog number10207993
Maximum body diameter2.0000
Maximum cutting diameter in2
Maximum depth of cut0.4724
Maximum insert radius0.2480
Maximum ramping angle0
Maximum rpm9800.000
Minimum cutting diameter in2
Minimum insert radius0.0160
Number of adjustable pockets0
Number of cutter inserts6
Number of flutes6
Overall height1.5748
Pitch typeClose
RakeNegative
StandardsANSI; ISO
Toolholder materialSteel
Tool applicationSlotting; Shouldering
Tool performanceGeneral Purpose
