Seco

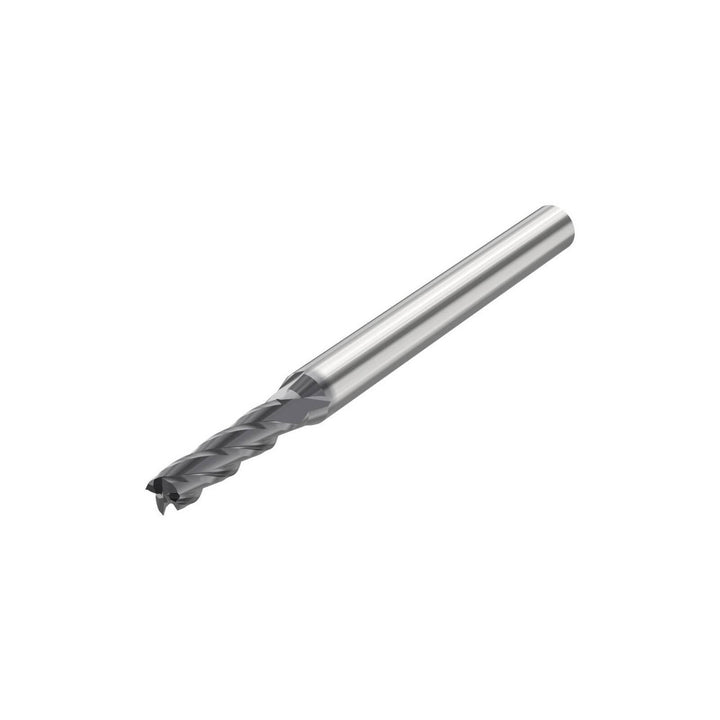

1/16" 4-Flute Solid Carbide Square End Mill, SIRON-A - Seco 10268263
MFR# 10268263Series C5141
$18.80List $23.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingSIRON-A
Description
The Seco 10268263 is a 1/16 4-flute Solid Carbide (Micrograin) square end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1/4 length of cut, 1-1/2 overall length. Series C5141.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishSIRON-A
Coating finish familySIRON-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in1/4
Length of cut range0.2000 to 0.4000
Length typeLong
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance-0.0005/0.0005 in
Neck diameter0.0675
Number of flutes4
Overall length in1-1/2
Overall length toleranceNAS 986
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Reach length in1/4
Shank diameter in1/8
Shank diameter toleranceANSI B94.19
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
