Seco

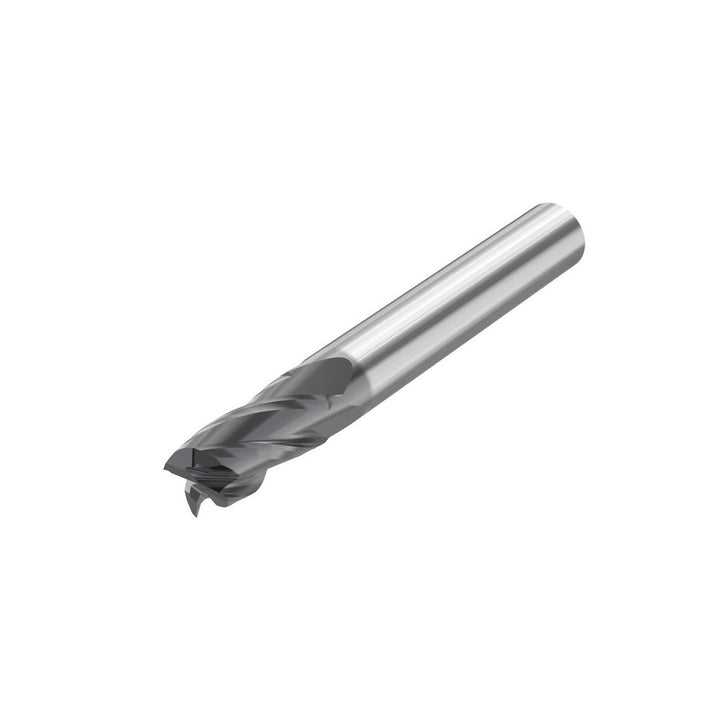

3/4" 4-Flute Solid Carbide Square End Mill, SIRON-A - Seco 10268347
MFR# 10268347Series C5141
$226.94List $286.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingSIRON-A
Description
The Seco 10268347 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1-1/2 length of cut, 4 overall length. Series C5141.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishSIRON-A
Coating finish familySIRON-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000+
Length typeShort
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in4
Overall length toleranceNAS 986
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Reach length in1-1/2
Shank diameter in3/4
Shank diameter toleranceANSI B94.19
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
