Seco

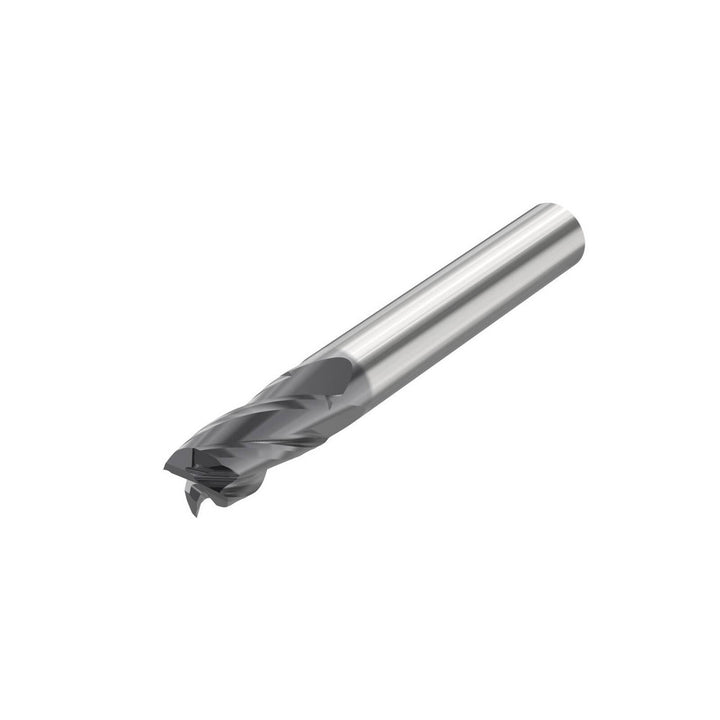

1" 4-Flute Solid Carbide Square End Mill, SIRON-A - Seco 10268354

MFR# 10268354Series C5141

$258.86List $332.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 10268354 is a 1 4-flute Solid Carbide (Micrograin) square end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1-1/2 length of cut, 4 overall length. Series C5141.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishSIRON-A

Coating finish familySIRON-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in1-1/2

Length of cut range1.5000+

Length typeShort

Material gradeMicrograin

Mill diameter in1

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in4

Overall length toleranceNAS 986

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Reach length in1-1/2

Shank diameter in1

Shank diameter toleranceANSI B94.19

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
