Seco

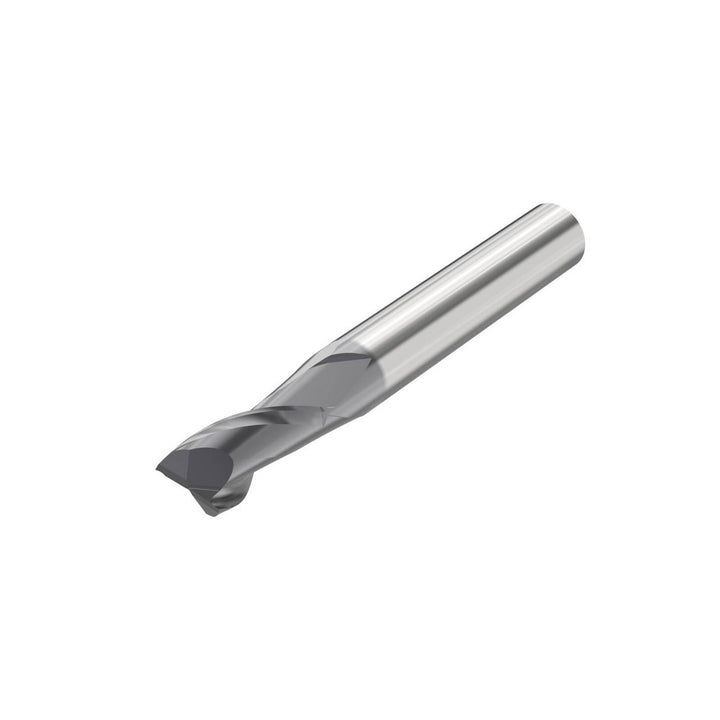

1/2" 2-Flute Solid Carbide Square End Mill, SIRON-A - Seco 10268736
MFR# 10268736Series C5121
$70.37List $90.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingSIRON-A
Description
The Seco 10268736 is a 1/2 2-flute Solid Carbide (Micrograin) square end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1 length of cut, 4 overall length. Series C5121.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishSIRON-A
Coating finish familySIRON-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in1
Length of cut range1.0000 to 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes2
Overall length in4
Overall length toleranceNAS 986
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Reach length in1
Shank diameter in1/2
Shank diameter toleranceANSI B94.19
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
