Seco

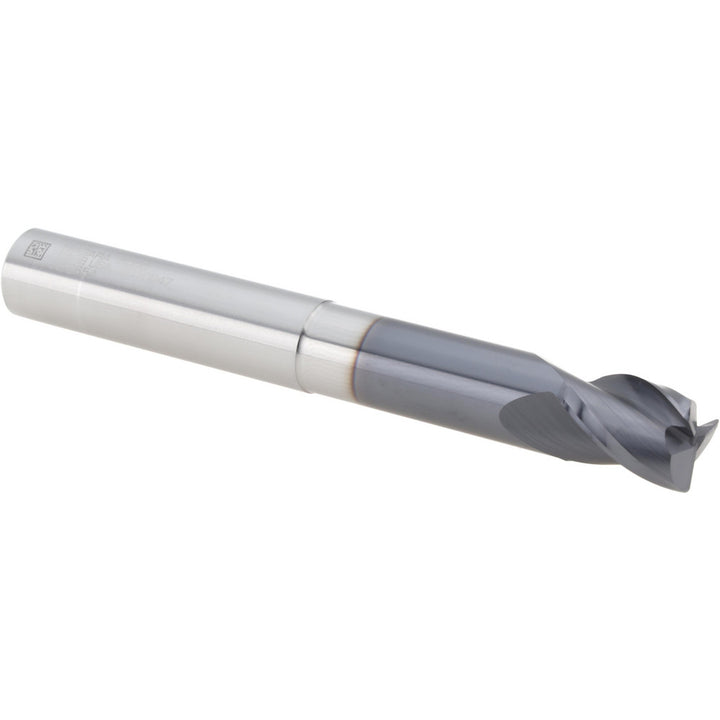

1/2" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17000069

MFR# 17000069Series SN335

$176.21List $226.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17000069 is a 1/2 3-flute Solid Carbide (Fine Grain) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 5/8 length of cut, 4 overall length. Series SN335.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in5/8

Length typeStub

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Neck diameter0.4800

Number of flutes3

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length in2-1/8

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeWeldon Flat

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
