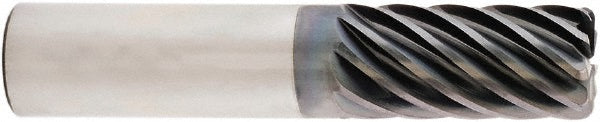

1" 9-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17002376
MFR# 17002376Series S938R
$578.54List $742.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes9
MaterialSolid Carbide
CoatingAlTiN
Description
The Seco 17002376 is a 1 9-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2 length of cut, 5 overall length. Series S938R.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in2
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes9
Overall length in5
Overall length tolerance-0.0600/0.0600 in
PitchSuper Close
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in1
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
