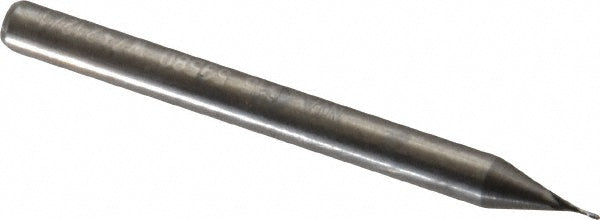

0.0150" 2-Flute Solid Carbide Square End Mill - Seco 17002397

Seco

0.0150" 2-Flute Solid Carbide Square End Mill - Seco 17002397

MFR# 17002397Series ME230

$29.70List $37.43 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Seco 17002397 is a 0.0150 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 0.0450 length of cut, 1-1/2 overall length. Series ME230.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.0450
Length of cut range0.0000 - 0.1000
Material gradeMicrograin
Mill diameter0.0150
Mill diameter tolerance+0.0005/-0.0005 in
Number of flutes2
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter in1/8
Single or double endSingle
System of measurementDecimal Inch
Tir maximum0.0002
Variable helixNo
Variable indexNo
