3/4" 2-Flute Solid Carbide Square End Mill - Seco 17002987

Seco

3/4" 2-Flute Solid Carbide Square End Mill - Seco 17002987

MFR# 17002987Series A245

$339.95List $436.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

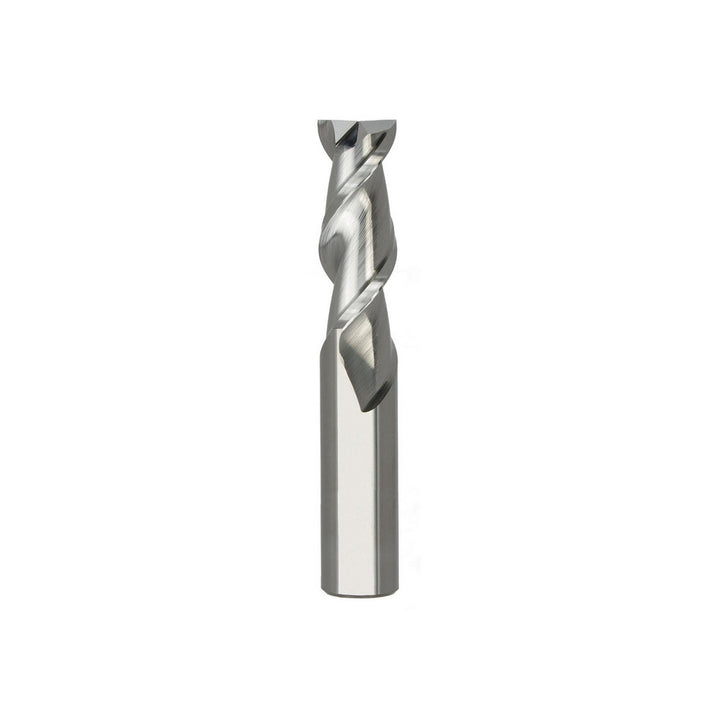

The Seco 17002987 is a 3/4 2-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 3-1/4 length of cut, 6 overall length. Series A245.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3-1/4
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes2
Overall length in6
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
