Seco

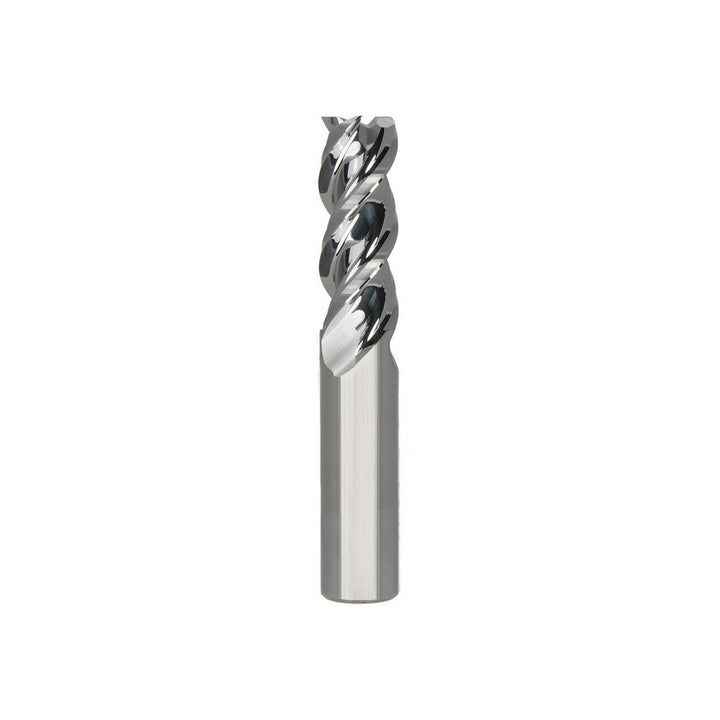

1/8" 3-Flute Solid Carbide Square End Mill - Seco 17003132

MFR# 17003132Series A345

$20.19List $25.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17003132 is a 1/8 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1/4 length of cut, 1-1/2 overall length. Series A345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1/4

Length typeShort

Material gradeMicrograin

Mill diameter in1/8

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes3

Overall length in1-1/2

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in1/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
