5/32" 3-Flute Solid Carbide Square End Mill - Seco 17003134

Seco

5/32" 3-Flute Solid Carbide Square End Mill - Seco 17003134

MFR# 17003134Series A345

$36.42
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

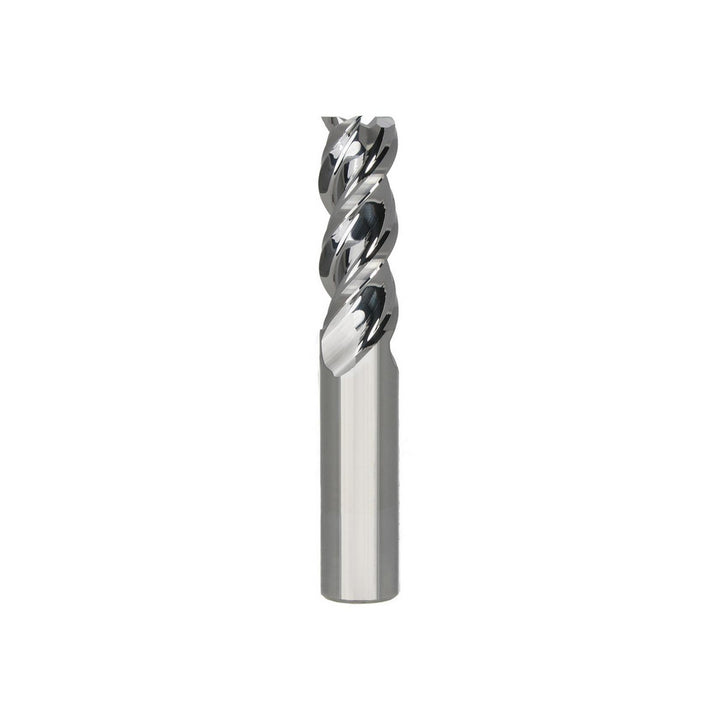

The Seco 17003134 is a 5/32 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 5/16 length of cut, 2 overall length. Series A345.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeShort
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes3
Overall length in2
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
