Seco

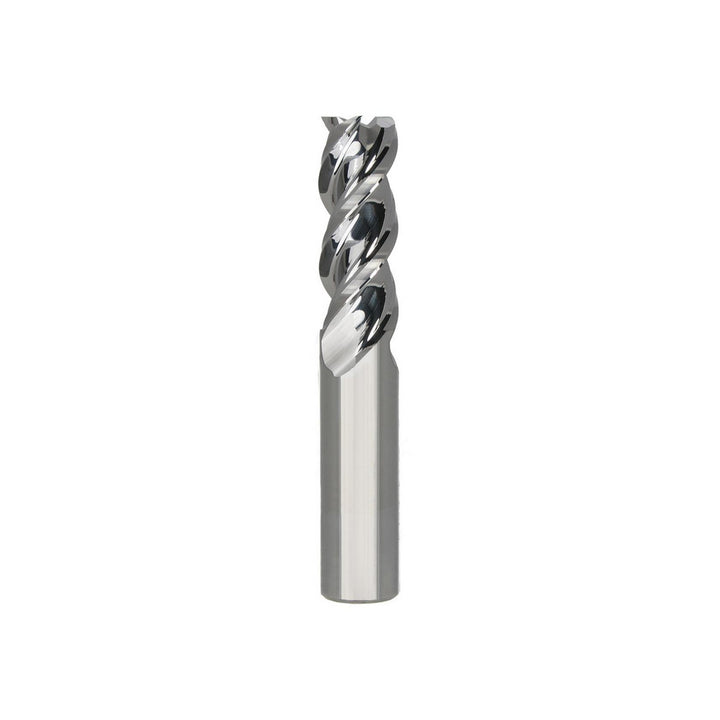

3/8" 3-Flute Solid Carbide Square End Mill - Seco 17003153

MFR# 17003153Series A345

$93.56List $120.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17003153 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1-1/2 length of cut, 4 overall length. Series A345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Length typeLong

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes3

Overall length in4

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
