Seco

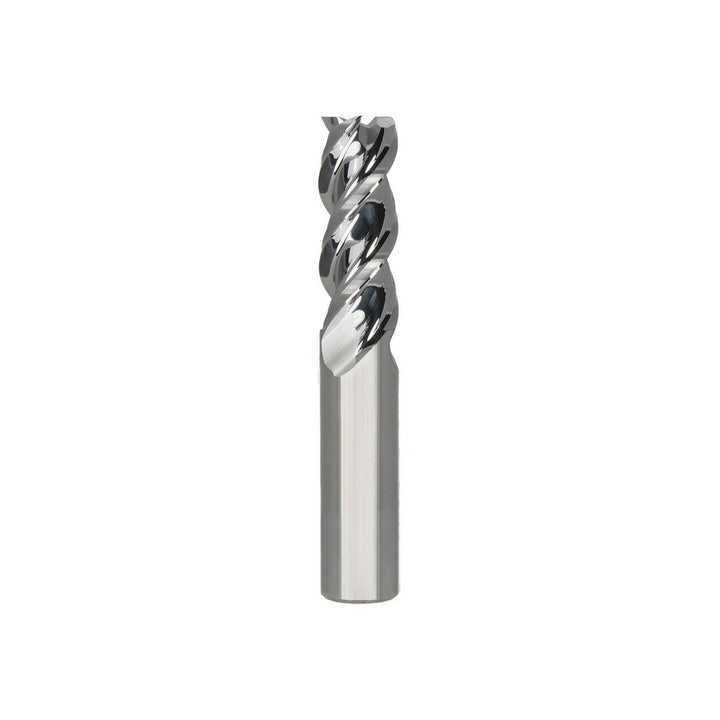

1/2" 3-Flute Solid Carbide Square End Mill - Seco 17003160

MFR# 17003160Series A345

$84.21List $108.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17003160 is a 1/2 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 5/8 length of cut, 3 overall length. Series A345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in5/8

Length typeStub

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance-0.0000/-0.0020 in

Number of flutes3

Overall length in3

Overall length tolerance+0.0015/-0.0015 in

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
