Seco

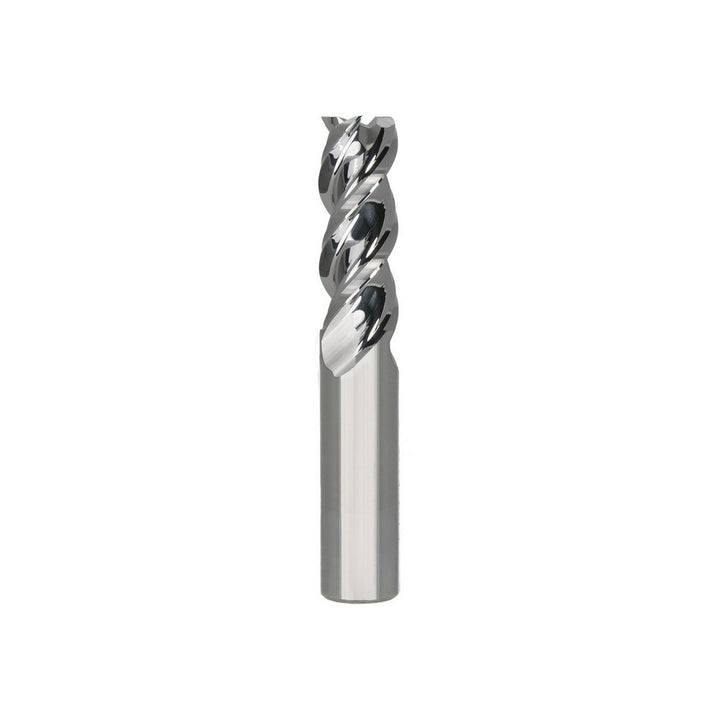

1" 3-Flute Solid Carbide Square End Mill - Seco 17003173
MFR# 17003173Series A345
$458.64
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Seco 17003173 is a 1 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1-1/4 length of cut, 4 overall length. Series A345.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeStub
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance-0.0000/-0.0020 in
Number of flutes3
Overall length in4
Overall length tolerance+0.0015/-0.0015 in
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in1
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
