Seco

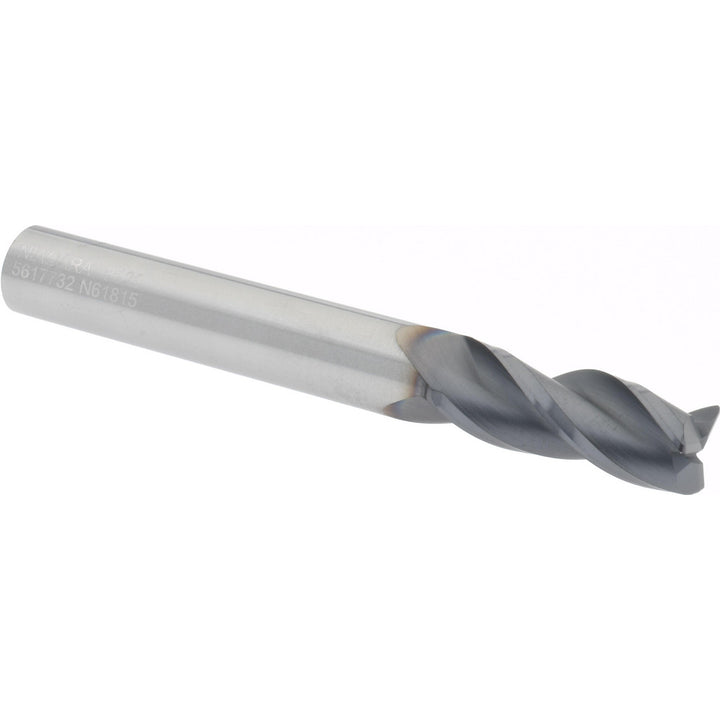

5/16" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17003413

MFR# 17003413Series Elite S

$51.14List $65.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17003413 is a 5/16 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 13/16 length of cut, 2-1/2 overall length. Series Elite S.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0200

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in13/16

Length typeStandard

Material applicationSteel; Stainless Steel; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter tolerance0.00/- 0.002

Number of flutes3

Overall length in2-1/2

Overall length tolerance+to- 0.060

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Shank diameter in5/16

Shank diameter tolerance- 0.0001/- 0.0004

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
