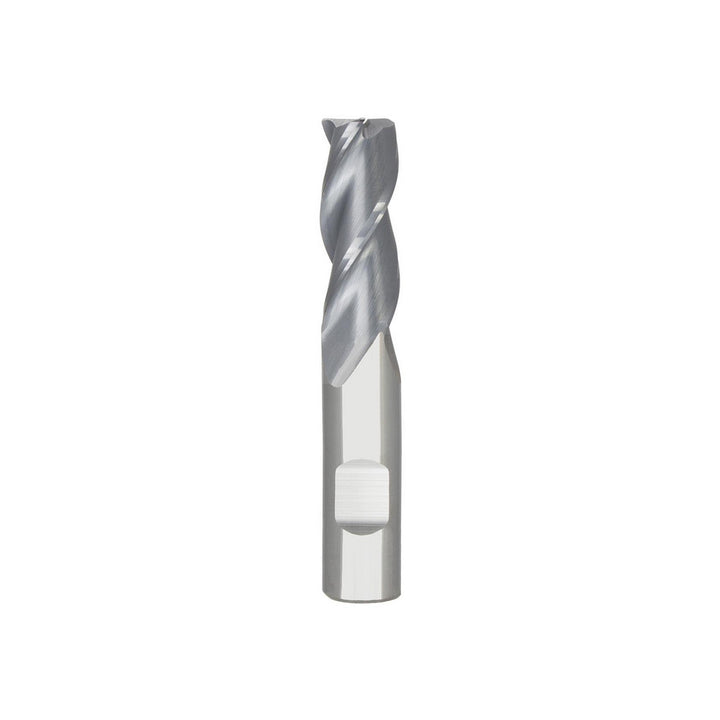

5/8" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17003422

Seco

5/8" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17003422

MFR# 17003422Series S335

$240.43List $303.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 17003422 is a 5/8 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 3/4 length of cut, 3 overall length. Series S335.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/4
Length typeStub
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in3
Overall length tolerance-0.0600/0.0600 in
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
