3/4" 5-Flute Solid Carbide Square End Mill - Seco 17003469

Seco

3/4" 5-Flute Solid Carbide Square End Mill - Seco 17003469

MFR# 17003469Series S545

$458.64List $578.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingBright/Uncoated

Description

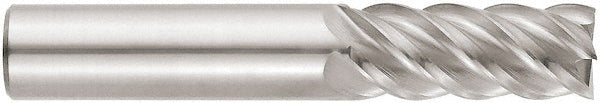

The Seco 17003469 is a 3/4 5-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 3-1/4 length of cut, 6 overall length. Series S545.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3-1/4
Length of cut range2.0000+
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes5
Overall length in6
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0004 in
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
