Seco

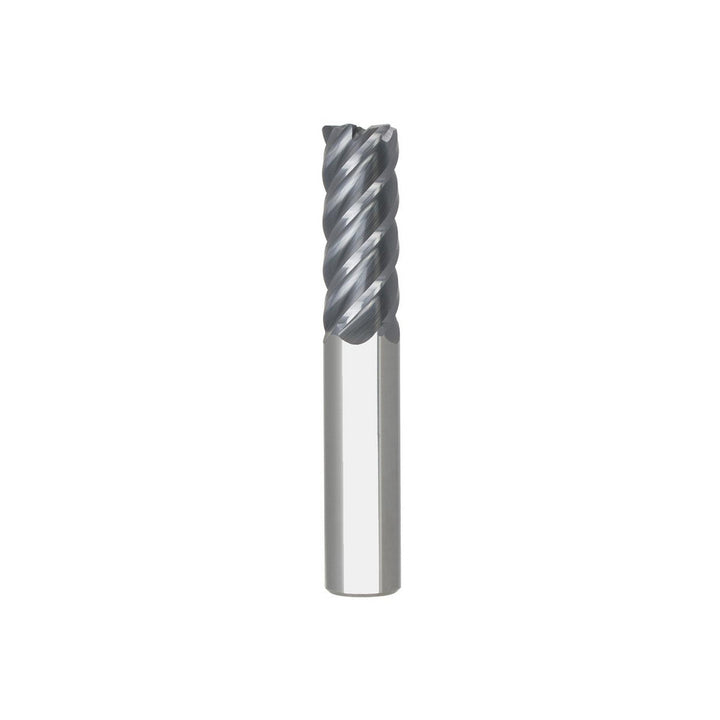

7/32" 5-Flute Solid Carbide Square End Mill, AlTiN - Seco 17003587
MFR# 17003587Series S545
$52.69List $66.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/32
Flutes5
MaterialSolid Carbide
CoatingAlTiN
Description
The Seco 17003587 is a 7/32 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 3/8 length of cut, 2 overall length. Series S545.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeShort
Material gradeMicrograin
Mill diameter in7/32
Mill diameter tolerance-0.0000/-0.0020 in
Number of flutes5
Overall length in2
Overall length tolerance+0.0015/-0.0015 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
