Seco

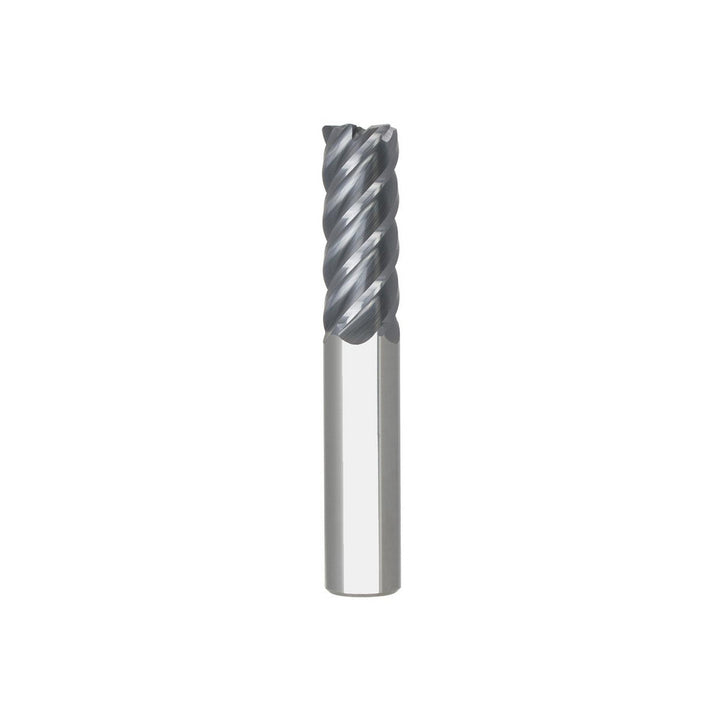

5/16" 5-Flute Solid Carbide Square End Mill, AlTiN - Seco 17003594

MFR# 17003594Series S545

$45.84List $58.80 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17003594 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 7/16 length of cut, 2 overall length. Series S545.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in7/16

Length typeStub

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance-0.0000/-0.0020 in

Number of flutes5

Overall length in2

Overall length tolerance+0.0015/-0.0015 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter in5/16

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
