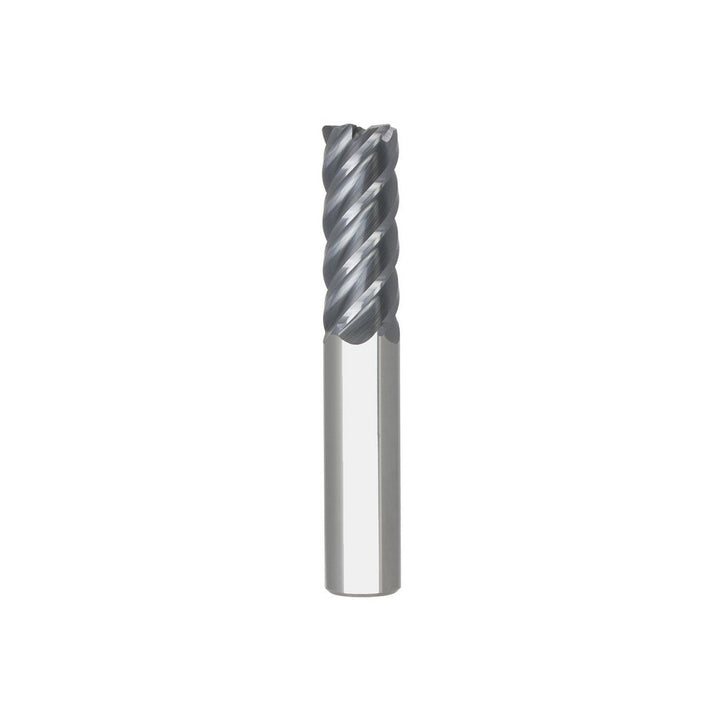

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - Seco 17003612

Seco

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - Seco 17003612

MFR# 17003612Series S545

$96.68List $124.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 17003612 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 1-1/4 length of cut, 3 overall length. Series S545.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance-0.0000/-0.0020 in
Number of flutes5
Overall length in3
Overall length tolerance+0.0015/-0.0015 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
