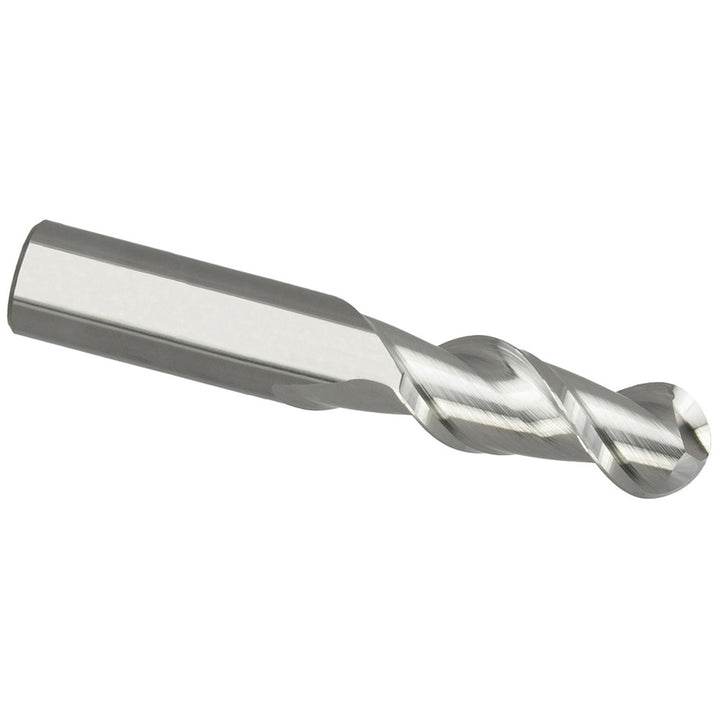

3/8" 2-Flute Solid Carbide Ball End Mill - Seco 17003637

MFR# 17003637Cat# AB245-0.375-D3-B.0-Z2Series AB245

$57.61List $73.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17003637 is a 3/8 2-flute Solid Carbide ball end mill. Suited for aluminum & non-ferrous. 1 length of cut, 2-1/2 overall length. Series AB245.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in1

Length typeStandard

Manufacturers catalog numberAB245-0.375-D3-B.0-Z2

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.1875

Number of flutes2

Overall length in2-1/2

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialAluminum & Non-Ferrous

Reach length1.0000

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
