Seco

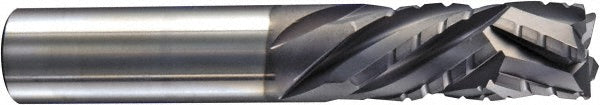

Spiral Router Bits - Seco 17003874
MFR# 17003874
$472.13List $595.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.1/2
CoatingDiamond
Description
The Seco 17003874 spiral router bits.
Specifications
Bit materialSolid Carbide
Coating finishDiamond
Cutter diameter in1/2
Cutter diameter tolerance-0.002 to +0.000 in
Cutting directionRight Hand
Flute typeCompression
Helix angle30
Length of cut in1-1/4
Material applicationCarbon Fiber; Composite; Graphite; Green Ceramic
Overall length in3
Overall length tolerance-0.0600 to +0.0600
PilotedNo
Router styleChipbreaker
Shank diameter in1/2
Shank diameter tolerance-0.000100 to -0.000400
