Seco

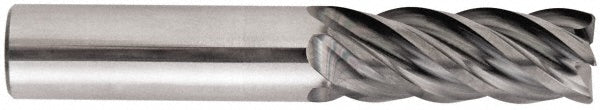

1" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 17004331

MFR# 17004331Series STR540

$402.75List $516.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes5

MaterialSolid Carbide

CoatingAlCrN

Description

The Seco 17004331 is a 1 5-flute Solid Carbide corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-3/4 length of cut, 4 overall length. Series STR540.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-3/4

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in1

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in1

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
