Seco

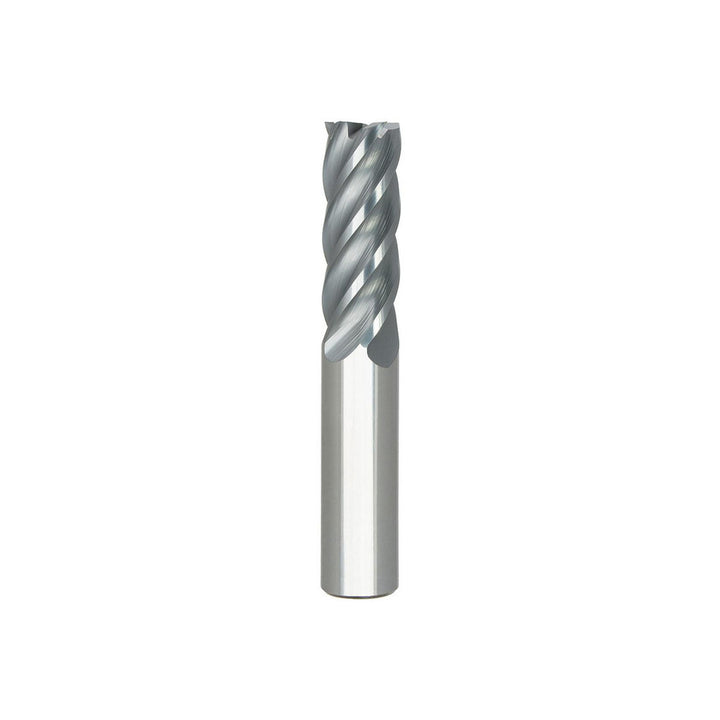

0.2362" 5-Flute Solid Carbide Square End Mill, AlTiN - Seco 17004374

MFR# 17004374Series STS540M

$36.26List $46.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17004374 is a 0.2362 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 0.4724 length of cut. Series STS540M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut0.4724

Length of cut range0.3000 - 0.5000

Length typeShort

Material gradeMicrograin

Mill diameter0.2362

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes5

Overall length (mm)58.00

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials

Shank diameter0.2362

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight

Single or double endSingle

System of measurementMetric

Tir maximum0.0005

Variable helixYes

Variable indexNo
