SGS

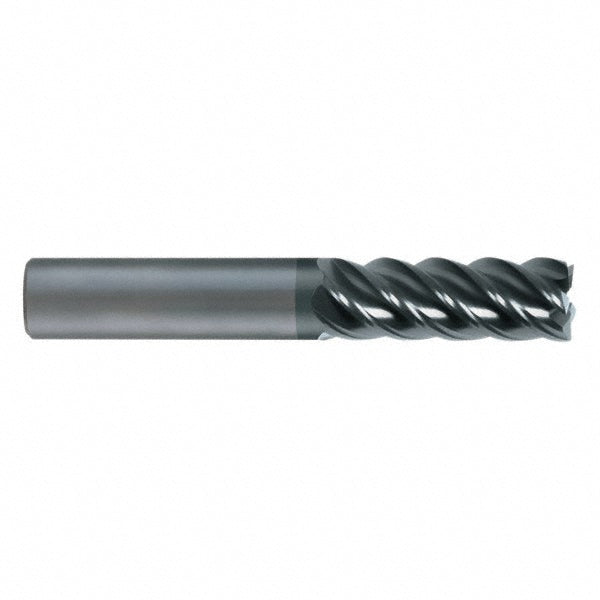

0.2362" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 42606

MFR# 42606Series 55MS

$32.97List $42.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 42606 is a 0.2362 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.4724 length of cut. Series 55MS.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut0.4724

Length of cut range0.3000 - 0.5000

Length typeStub

Material gradeMicrograin

Mill diameter0.2362

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes5

Overall length (mm)50

Shank diameter0.2362

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
