Seco

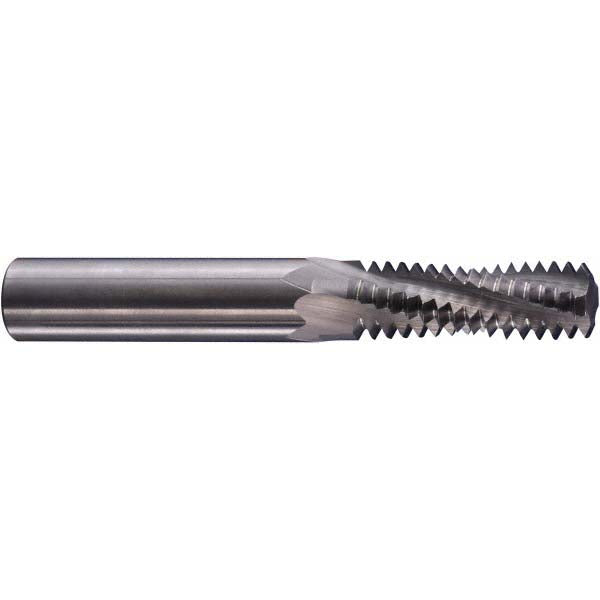

Helical Flute Thread Mills - Seco 17004413
MFR# 17004413
$176.21List $226.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
CoatingAlCrN
Description
The Seco 17004413 helical flute thread mills.
Specifications
Coating finishAlCrN
Coolant throughNo
Cutting diameter0.0850
Cutting diameter tolerance+0.0000 to -0.0020
Flute directionRight Hand
Length of cut0.1750
MaterialSolid Carbide
Number of flutes3
Overall length tolerance0.0600
Shank diameter0.1250
Shank diameter tolerance-0.0001 to -0.0004
Teeth per inch40
Thread length tolerance+0.0300 to -0.0000
Thread size in#4-40
Thread standardUN
Thread typeInternal; External
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
