Seco

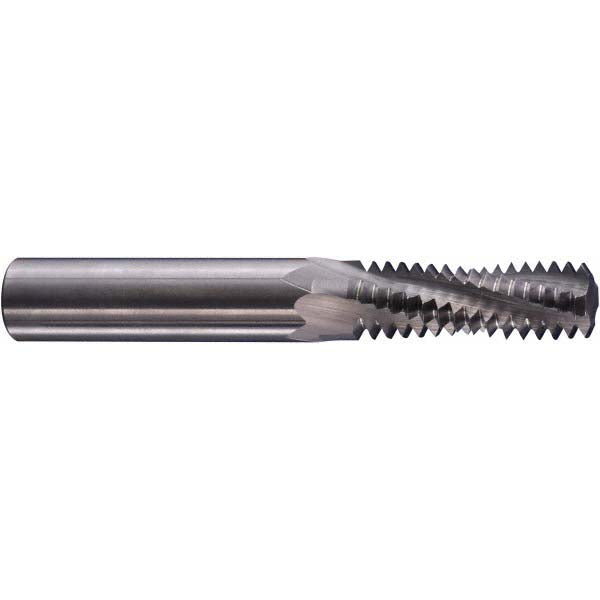

Helical Flute Thread Mills - Seco 17004417
MFR# 17004417
$153.74List $197.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingAlCrN
Description
The Seco 17004417 helical flute thread mills.
Specifications
Coating finishAlCrN
Coolant throughNo
Cutting diameter0.1150
Cutting diameter tolerance+0.0000 to -0.0020
Flute directionRight Hand
Length of cut0.2500
MaterialSolid Carbide
Number of flutes3
Overall length tolerance0.0600
Shank diameter0.1250
Shank diameter tolerance-0.0001 to -0.0004
Teeth per inch32
Thread length tolerance+0.0300 to -0.0000
Thread size in#8-32
Thread standardUN
Thread typeInternal; External
