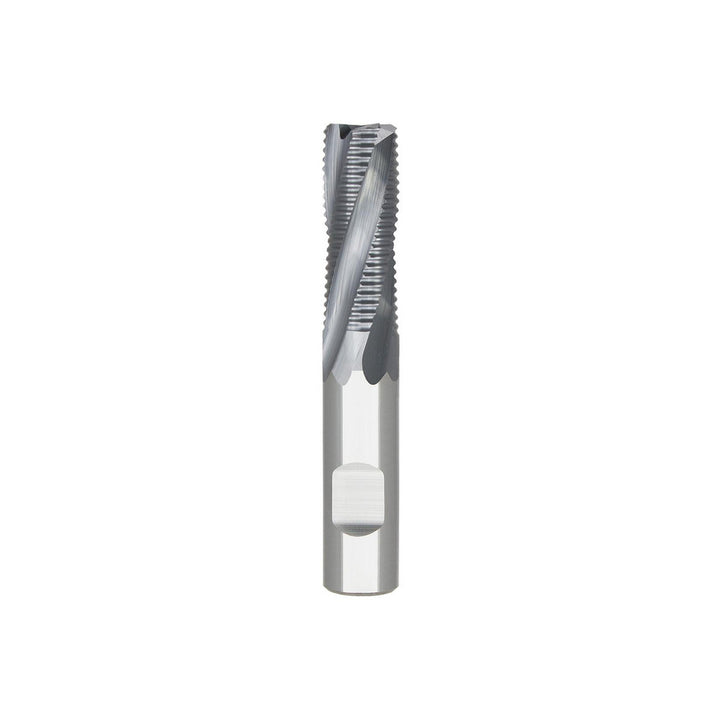

0.2500" 4-Flute Solid Carbide Roughing End Mill - Seco 17004614

Seco

0.2500" 4-Flute Solid Carbide Roughing End Mill - Seco 17004614

MFR# 17004614Series SR420

$58.79List $75.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Seco 17004614 is a 0.2500 4-flute Solid Carbide (M42) roughing end mill. Series SR420.

Specifications

CentercuttingYes
Chamfer angle45
Chamfer width0.0200
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.3750
Material gradeM42
Maximum helix angle20
Mill diameter0.2500
Mill diameter frac in1/4
Number of flutes4
Overall length tolerance0.060 in
PitchFine
Shank diameter in1/4
Shank diameter tolerance-0.0001 to -0.0004 in
Shank typeWeldon Flat
Single or double endSingle
