Seco

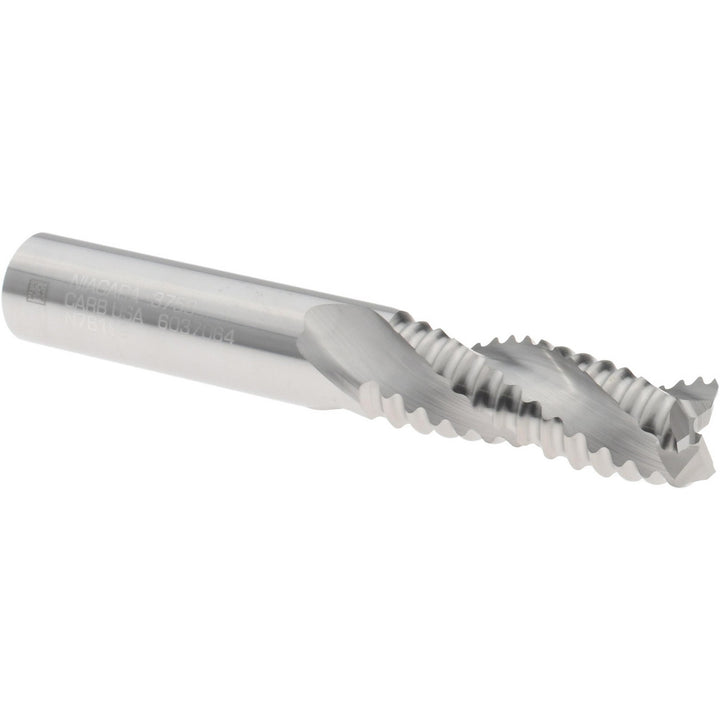

0.375" 3-Flute Solid Carbide Roughing End Mill - Seco 17004683
MFR# 17004683Series AR330
$77.16List $98.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Seco 17004683 is a 0.375 3-flute Solid Carbide (M42) roughing end mill. Series AR330.
Specifications
CentercuttingYes
Chamfer angle45
Chamfer width0.0200
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.0000
Material gradeM42
Maximum helix angle30
Mill diameter0.375
Mill diameter frac in3/8
Number of flutes3
Overall length tolerance0.060 in
PitchCoarse
Shank diameter in3/8
Shank diameter tolerance-0.0001 to -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
