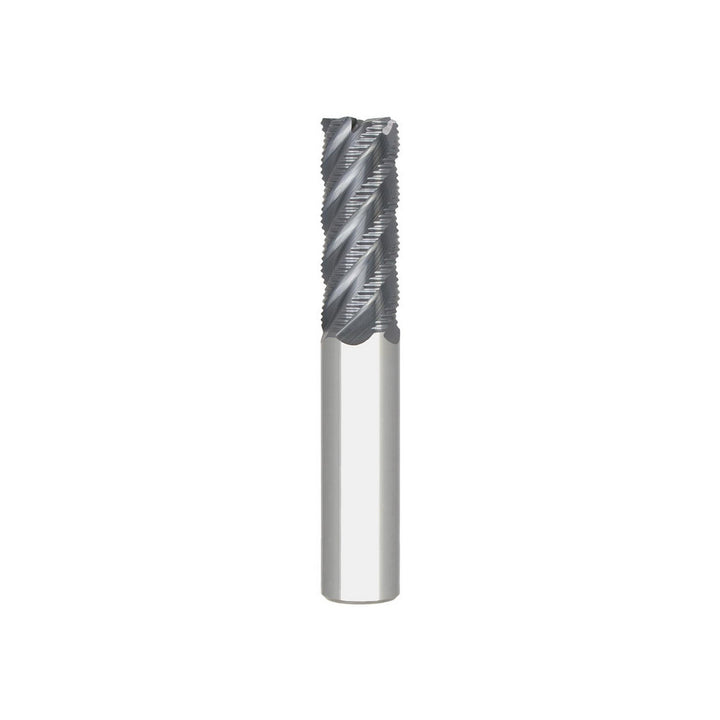

0.5000" 5-Flute Solid Carbide Roughing End Mill, AlTiN - Seco 17007607

Seco

0.5000" 5-Flute Solid Carbide Roughing End Mill, AlTiN - Seco 17007607

MFR# 17007607Series SR545

$150.48List $193.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 17007607 is a 0.5000 5-flute Solid Carbide (M42) roughing end mill with a AlTiN finish for longer tool life. Series SR545.

Specifications

CentercuttingYes
Chamfer angle45
Chamfer width0.0250
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.6250
Material gradeM42
Maximum helix angle45
Mill diameter0.5000
Mill diameter frac in1/2
Number of flutes5
Overall length tolerance0.060 in
PitchFine
Shank diameter in1/2
Shank diameter tolerance-0.0001 to -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
