Seco
3/4" 4-Flute Cobalt Corner Radius & Corner Chamfer End Mill - Seco 17013174
MFR# 17013174Cat# VFP435-0.750-D2-C030.3-Z4Series VFP635
$111.50List $143.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialCobalt
Description

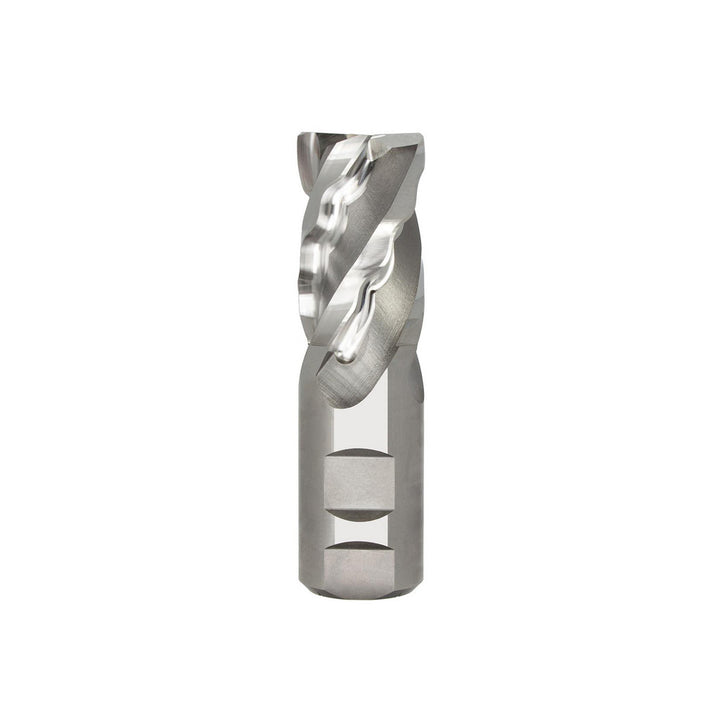

The Seco 17013174 is a 3/4 4-flute Cobalt (M42) corner radius & corner chamfer end mill. Suited for stainless steel, superalloys & titanium. 1-5/8 length of cut, 3-7/8 overall length. Series VFP635.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0300
Chamfer width0.0300
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleMedium
Length of cut in1-5/8
Length typeShort
Manufacturers catalog numberVFP435-0.750-D2-C030.3-Z4
Material gradeM42
Material removal typeRoughing
Mill diameter in3/4
Mill diameter tolerance+0.0020 to -0.0000 in
Number of flutes4
Overall length in3-7/8
PitchSuper Close
Primary workpiece materialStainless Steel; Superalloys & Titanium
Reach length in1-5/8
Shank diameter in3/4
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
