Seco

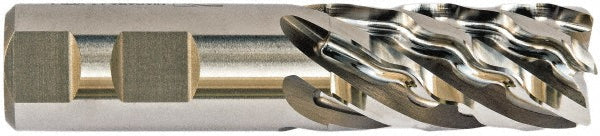

1-1/2" 4-Flute Cobalt Corner Radius & Corner Chamfer End Mill - Seco 17013193
MFR# 17013193Cat# VFP635-1.500-P3-C040.3-Z6Series VFP635
$437.41List $561.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1-1/2
Flutes4
MaterialCobalt
Description
The Seco 17013193 is a 1-1/2 4-flute Cobalt (M42) corner radius & corner chamfer end mill. Suited for stainless steel, superalloys & titanium. 4 length of cut, 6-1/2 overall length. Series VFP635.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0400
Chamfer width0.0400
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleMedium
Length of cut in4
Length typeRegular
Manufacturers catalog numberVFP635-1.500-P3-C040.3-Z6
Material gradeM42
Material removal typeRoughing
Mill diameter in1-1/2
Mill diameter tolerance+0.0020 to -0.0000 in
Number of flutes4
Overall length in6-1/2
PitchSuper Close
Primary workpiece materialStainless Steel; Superalloys & Titanium
Reach length in4
Shank diameter in1-1/4
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
