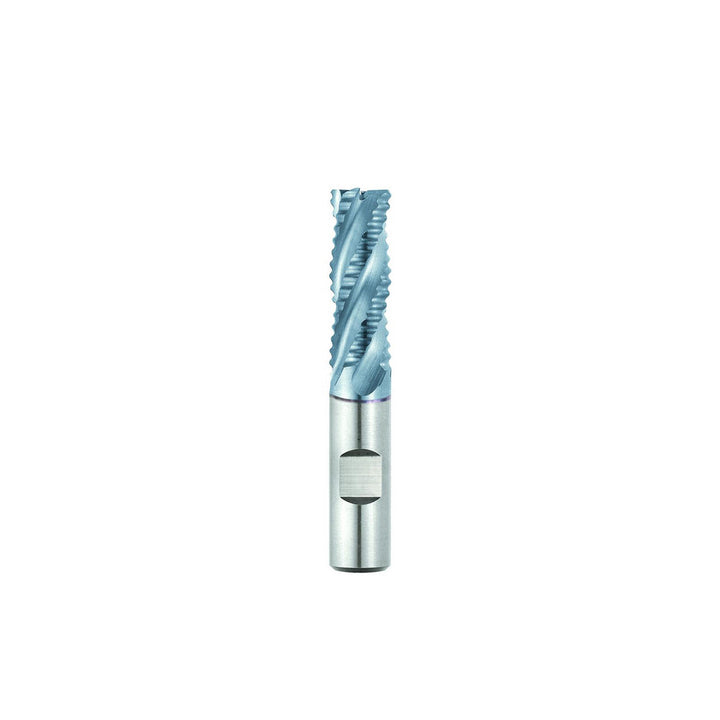

1.0000" 5-Flute Cobalt Roughing End Mill, TiCN - Seco 17013506

Seco

1.0000" 5-Flute Cobalt Roughing End Mill, TiCN - Seco 17013506

MFR# 17013506Series REM710

$127.87List $164.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialCobalt
CoatingTiCN

Description

The Seco 17013506 is a 1.0000 5-flute Cobalt (M42) roughing end mill with a TiCN finish for longer tool life. Series REM710.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.5000
Length typeRegular
Material gradeM42
Maximum helix angle30
Mill diameter1.0000
Mill diameter frac in1
Mill diameter tolerance+0.003 to -0.000 in
Number of flutes5
Overall length tolerance+0.062 to -0.000 in
Shank diameter in3/4
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel1.0000" 5-Flute Cobalt Single End Mill, TiN - Hertel 62889274 $76.32 Seco1.0000" 5-Flute Cobalt Roughing End Mill, TiCN - Seco 17016212 $138.79 M.A. Ford.1" 5-Flute Solid Carbide Square End Mill - M.A. Ford. 17810010A $503.22 Kennametal1.0000" 5-Flute Solid Carbide Roughing End Mill, AlTiN - Kennametal 4048688 $487.34
