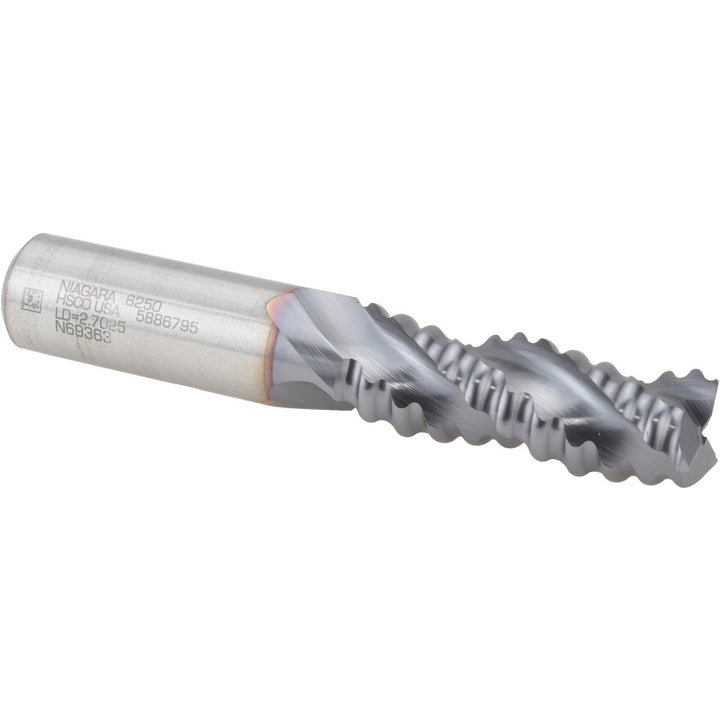

0.625" 3-Flute Cobalt Roughing End Mill, TiCN - Seco 17013552

Seco

0.625" 3-Flute Cobalt Roughing End Mill, TiCN - Seco 17013552

MFR# 17013552Series RHC752

$73.68List $94.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialCobalt
CoatingTiCN

Description

The Seco 17013552 is a 0.625 3-flute Cobalt (M42) roughing end mill with a TiCN finish for longer tool life. Series RHC752.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleHigh
Length of cut1.6250
Length typeRegular
Material gradeM42
Maximum helix angle36
Mill diameter0.625
Mill diameter frac in5/8
Mill diameter tolerance+0.005 to -0.000 in
Number of flutes3
Overall length tolerance+0.062 to -0.000 in
Shank diameter in5/8
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
