Seco

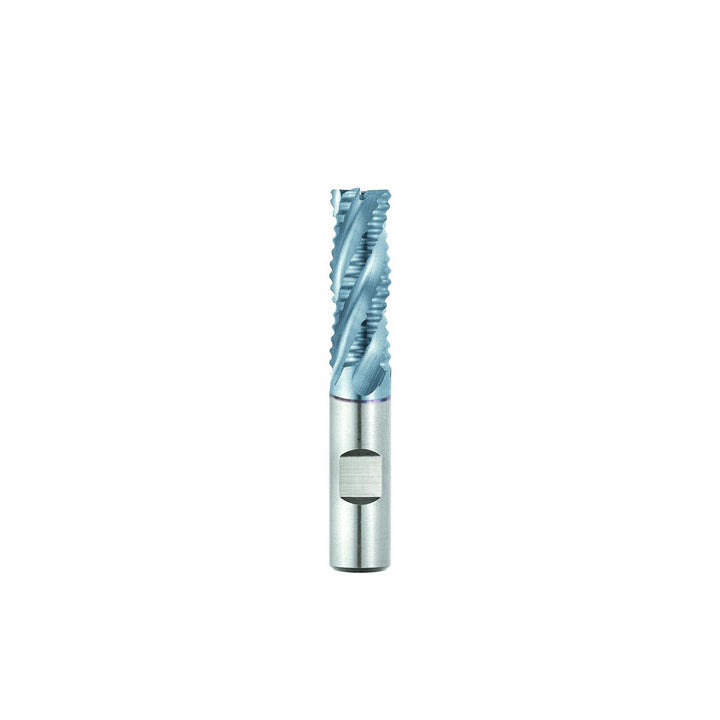

0.3125" 4-Flute Cobalt Roughing End Mill - Seco 17014072
MFR# 17014072Series REM710
$43.04List $55.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialCobalt
Description
The Seco 17014072 is a 0.3125 4-flute Cobalt (M42) roughing end mill. Series REM710.
Specifications
CentercuttingNo
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.7500
Length typeRegular
Material gradeM42
Maximum helix angle30
Mill diameter0.3125
Mill diameter frac in5/16
Mill diameter tolerance+0.003 to -0.000 in
Number of flutes4
Overall length tolerance+0.062 to -0.000 in
Shank diameter in3/8
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
