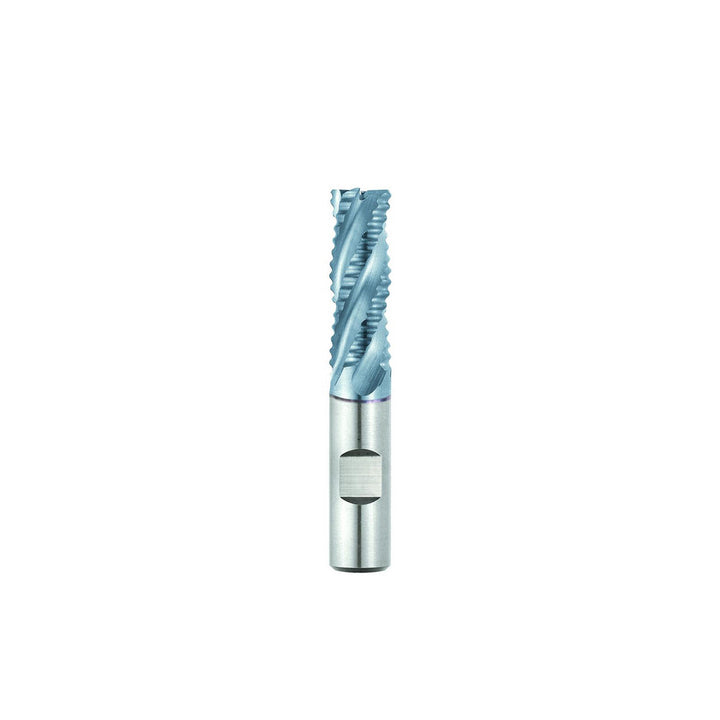

0.5000" 4-Flute Cobalt Roughing End Mill - Seco 17014199

Seco

0.5000" 4-Flute Cobalt Roughing End Mill - Seco 17014199

MFR# 17014199Series REM710

$66.04List $84.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialCobalt
CoatingBright/Uncoated

Description

The Seco 17014199 is a 0.5000 4-flute Cobalt (M42) roughing end mill. Series REM710.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.6250
Material gradeM42
Maximum helix angle30
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.003 to -0.000 in
Number of flutes4
Overall length tolerance+0.062 to -0.000 in
Shank diameter in1/2
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
