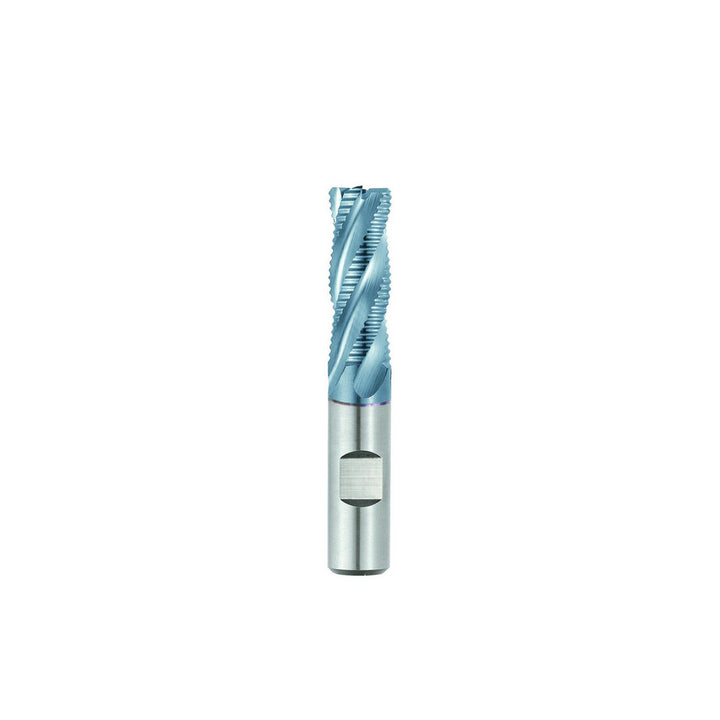

0.5000" 4-Flute Cobalt Roughing End Mill, TiAlN - Seco 17014824

Seco

0.5000" 4-Flute Cobalt Roughing End Mill, TiAlN - Seco 17014824

MFR# 17014824Series REM445

$62.69List $80.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialCobalt
CoatingTiAlN

Description

The Seco 17014824 is a 0.5000 4-flute Cobalt (M42) roughing end mill with a TiAlN finish for longer tool life. Series REM445.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.0000
Length typeShort
Material gradeM42
Maximum helix angle30
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.003 to -0.000 in
Number of flutes4
Overall length tolerance+0.062 to -0.000 in
Shank diameter in1/2
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Widia1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879527 $73.16 Iscar1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3401163 $90.57 SGS1/2" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36858 $101.89 Seco1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03083833 $117.99
