Seco

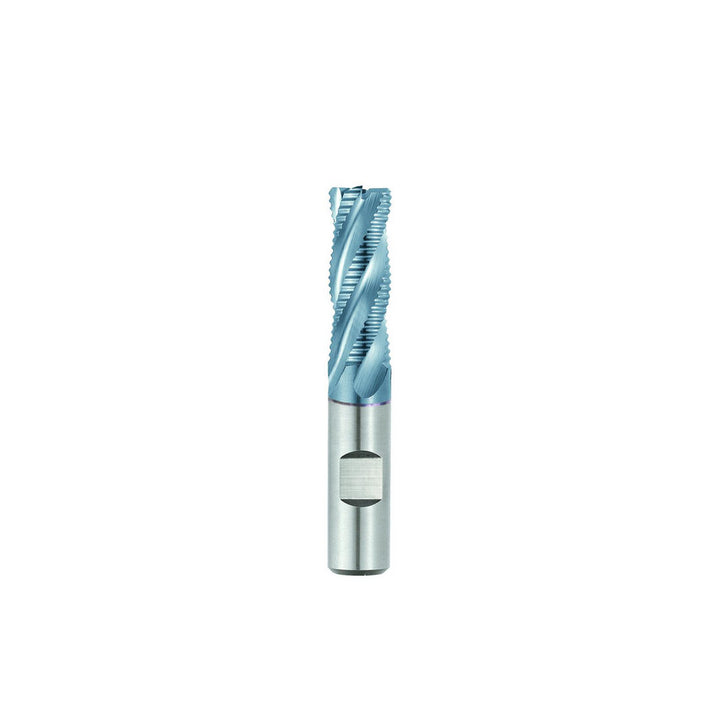

0.6250" 4-Flute Cobalt Roughing End Mill, TiAlN - Seco 17014834
MFR# 17014834Series REM445
$78.95List $101.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialCobalt
CoatingTiAlN
Description
The Seco 17014834 is a 0.6250 4-flute Cobalt (M42) roughing end mill with a TiAlN finish for longer tool life. Series REM445.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut2.1250
Length typeRegular
Material gradeM42
Maximum helix angle30
Mill diameter0.6250
Mill diameter frac in5/8
Mill diameter tolerance+0.003 to -0.000 in
Number of flutes4
Overall length tolerance+0.062 to -0.000 in
Shank diameter in5/8
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
