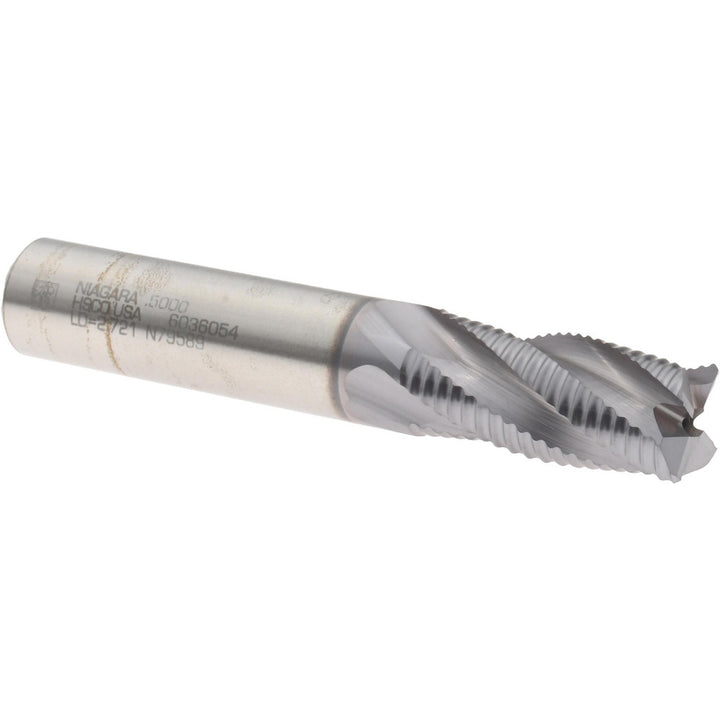

0.5" 4-Flute Cobalt Roughing End Mill, TiCN - Seco 17015345

Seco

0.5" 4-Flute Cobalt Roughing End Mill, TiCN - Seco 17015345

MFR# 17015345Series REM445

$62.69List $80.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialCobalt
CoatingTiCN

Description

The Seco 17015345 is a 0.5 4-flute Cobalt (M42) roughing end mill with a TiCN finish for longer tool life. Series REM445.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.0000
Length typeShort
Material gradeM42
Maximum helix angle30
Mill diameter0.5
Mill diameter frac in1/2
Mill diameter tolerance+0.003 to -0.000 in
Number of flutes4
Overall length tolerance+0.062 to -0.000 in
Shank diameter in1/2
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
