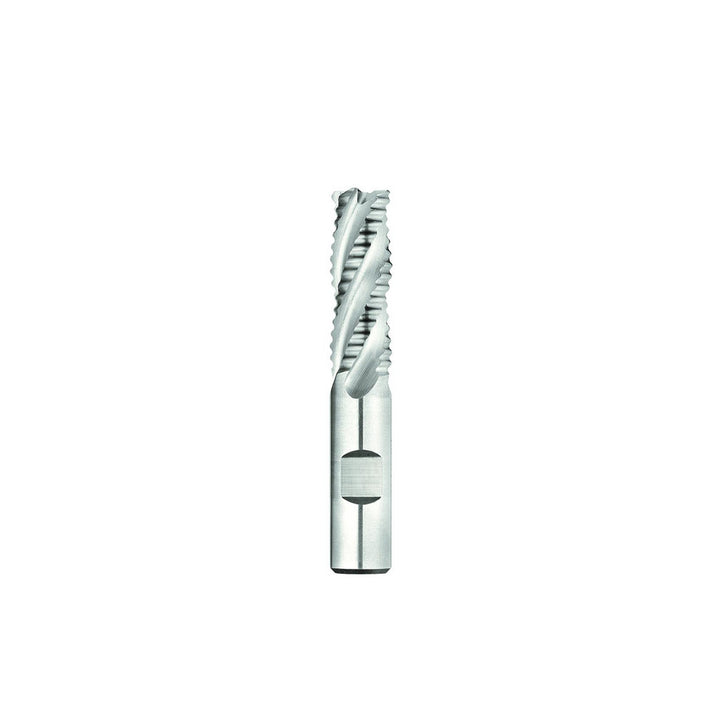

0.3750" 4-Flute Cobalt Roughing End Mill, TiCN - Seco 17016582

Seco

0.3750" 4-Flute Cobalt Roughing End Mill, TiCN - Seco 17016582

MFR# 17016582Series REC700

$68.53List $87.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialCobalt
CoatingTiCN

Description

The Seco 17016582 is a 0.3750 4-flute Cobalt (M42) roughing end mill with a TiCN finish for longer tool life. Series REC700.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.5000
Length typeLong
Material gradeM42
Maximum helix angle30
Mill diameter0.3750
Mill diameter frac in3/8
Mill diameter tolerance+0.003 to -0.000 in
Number of flutes4
Overall length tolerance+0.062 to -0.000 in
Shank diameter in3/8
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
