Seco

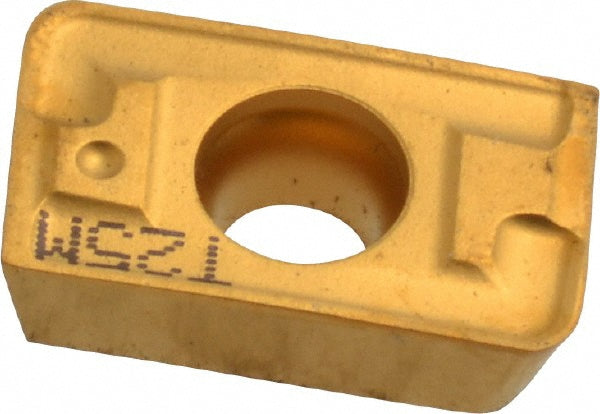

APFT160416L-M13 Solid Carbide Insert, Grade T25M, TiCN - Seco 74000303
MFR# 74000303ISO/ANSI# APFT160416L-M13Cat# APFT160416L-M13Series APFT-16
$41.56List $52.38
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74000303 is a APFT160416L-M13 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeAPFT160416L-M13
Chip breakerM13
Coating finishTiCN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160416
Insert styleAPFT
Iso codeAPFT160416L-M13
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPFT160416L-M13
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle15
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1945
Thickness range0.1850 to 0.2000
Width in3/8
