Seco

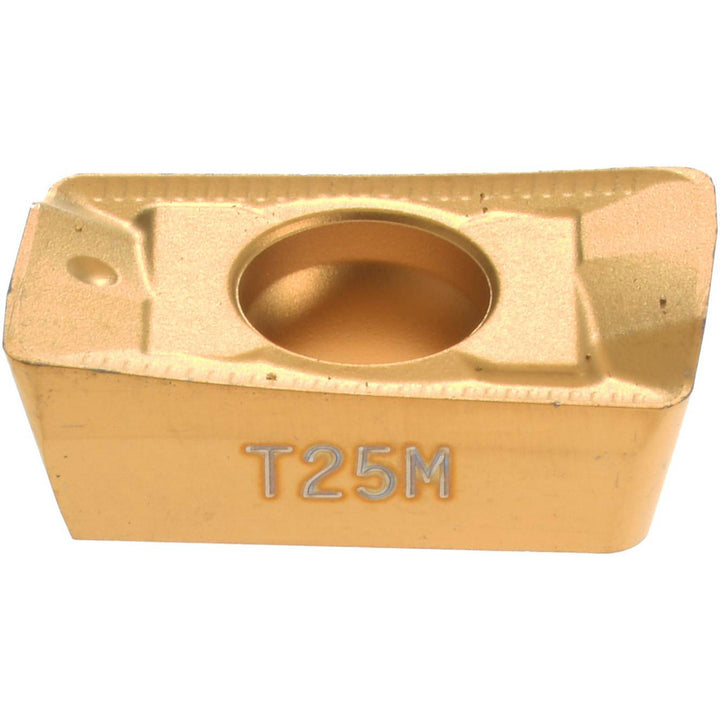

APKX1604PDR-ME12 Solid Carbide Insert, Grade T25M, TiCN - Seco 74000323
MFR# 74000323ISO/ANSI# APKX1604PDR-ME12Cat# APKX1604PDR-ME12.034Series APKX-16
$31.92List $40.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74000323 is a APKX1604PDR-ME12 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeAPKX1604PDR-ME12.034
Chip breakerME12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6598
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKX
Iso codeAPKX1604PDR-ME12
Length0.6598
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKX1604PDR-ME12.034
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle24
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2232
Thickness range0.2200 to 0.2350
Width in3/8
