Seco

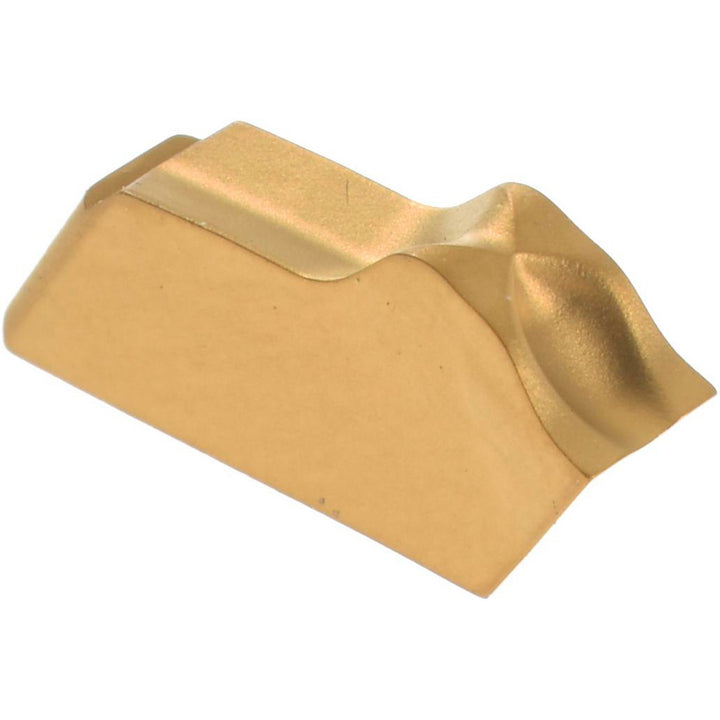

Carbide Insert, Grade T25M, TiC/TiCN/TiN - Seco 74001216
MFR# 74001216Series 150.10
$21.82List $27.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT25M
MaterialCarbide
CoatingTiC/TiCN/TiN
Description
The Seco 74001216 is a carbide indexable insert, grade T25M, TiC/TiCN/TiN coated. Suited for universal.
Specifications
Chipbreaker14
Coating finishTiC/TiCN/TiN
Coating processCVD
Corner radius0.0080
Cutting tool applicationCut-off
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code3
Lead angle0
Lead angle directionNeutral
Manufacturer gradeT25M
Material gradeC5
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Relief angle0.00
Single or double endSingle
Width tolerance0.003
