Seco

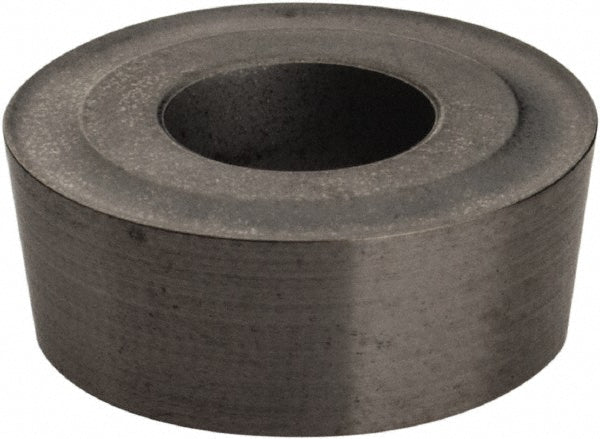

RCMM120400-46 Carbide Insert, Grade 883 - Seco 74001415
MFR# 74001415ISO/ANSI# RCMM43-46Series RCMM-46
$12.28List $15.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade883
MaterialCarbide
Description
The Seco 74001415 is a RCMM120400-46 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Chip breaker46
Clearance codeC
Coating processUncoated
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Hole diameter0.2031
Included angle360degree
Industry standard numberRCMM43-46
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMM
Insert thickness in3/16
Iso codeRCMM120400-46
Lead angle360degree
Length range0.5000 - 0.6000
Manufacturers catalog number74001415
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.2500
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
