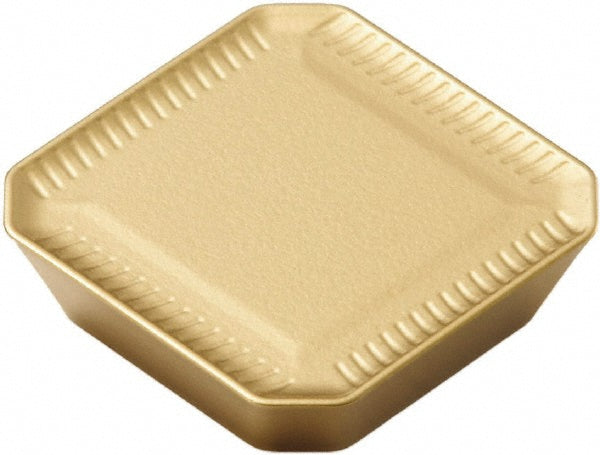

SEKR1204AFTN-ME16 Solid Carbide Insert, Grade T25M, TiCN - Seco 74003666
MFR# 74003666ISO/ANSI# SEKR1204AFTN-ME16Cat# SEKR1204AFTN-ME16Series SEKR-12
$26.77List $34.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74003666 is a SEKR1204AFTN-ME16 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeSEKR1204AFTN-ME16
Chip breakerME16
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR220.13-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEKR
Iso codeSEKR1204AFTN-ME16
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKR1204AFTN-ME16
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
RakePositive
Rake angle20
Relief angle20
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
