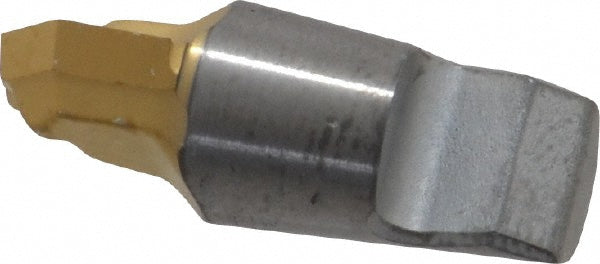

Carbide Insert, Grade T60M, TiAlN - Seco 74003764

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74003764

MFR# 74003764Series MM10

$97.87
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74003764 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerE03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1730
Cutting diameter0.1900
Cutting width0.3940in
Extension from holder in0.3340
Functional length0.3340
Included angle degree90
Insert handRight Hand
Insert size0.394-45.10
Lead angle45
Length of cut0.1020in
Manufacturers catalog number74003764
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.1020
Milling tip full descriptionMM10-0.394-45.10-E03
Milling tip styleMM10
Milling tip typeChamfer
Number of flutes2
Overall length0.3340in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
