Seco

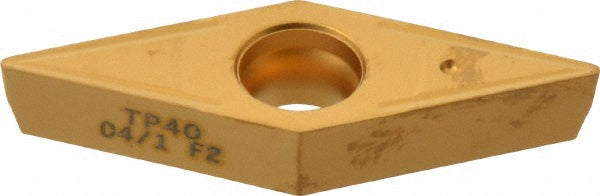

VBMT160404-F2 Carbide Insert, Grade TP40, TiC - Seco 74003926
MFR# 74003926ISO/ANSI# VBMT331-F2Series VBMT-F2
$23.58List $30.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74003926 is a VBMT160404-F2 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF2
Clearance codeB
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1772
Included angle35degree
Industry standard numberVBMT331-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-F2
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number74003926
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
