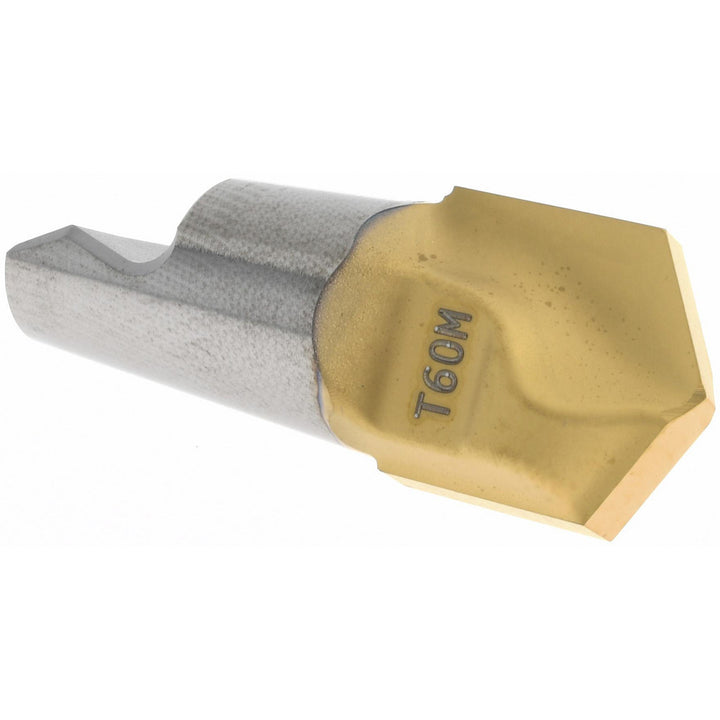

Carbide Insert, Grade T60M, TiAlN - Seco 74004537

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74004537

MFR# 74004537Series MM10

$97.87
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74004537 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle60
ChipbreakerM03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2870
Cutting diameter0.3940
Cutting width0.394
Extension from holder in0.4650
Functional length0.4650
Included angle degree120
Insert handRight Hand
Insert size0.394-C120
Lead angle60
Length of cut0.1060
Manufacturers catalog number74004537
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.1060
Milling tip full descriptionMM10-0.394-C120-M03
Milling tip styleMM10
Milling tip typeChamfer
Number of flutes2
Overall length0.465
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
